Xhorse V5.0.5 VVDI MB BGA TooL for Benz Key Programmer Including BGA Calculator Function VVDI Prog

Will be shipped in 3-5 days
View cart
Guaranteed safe checkout

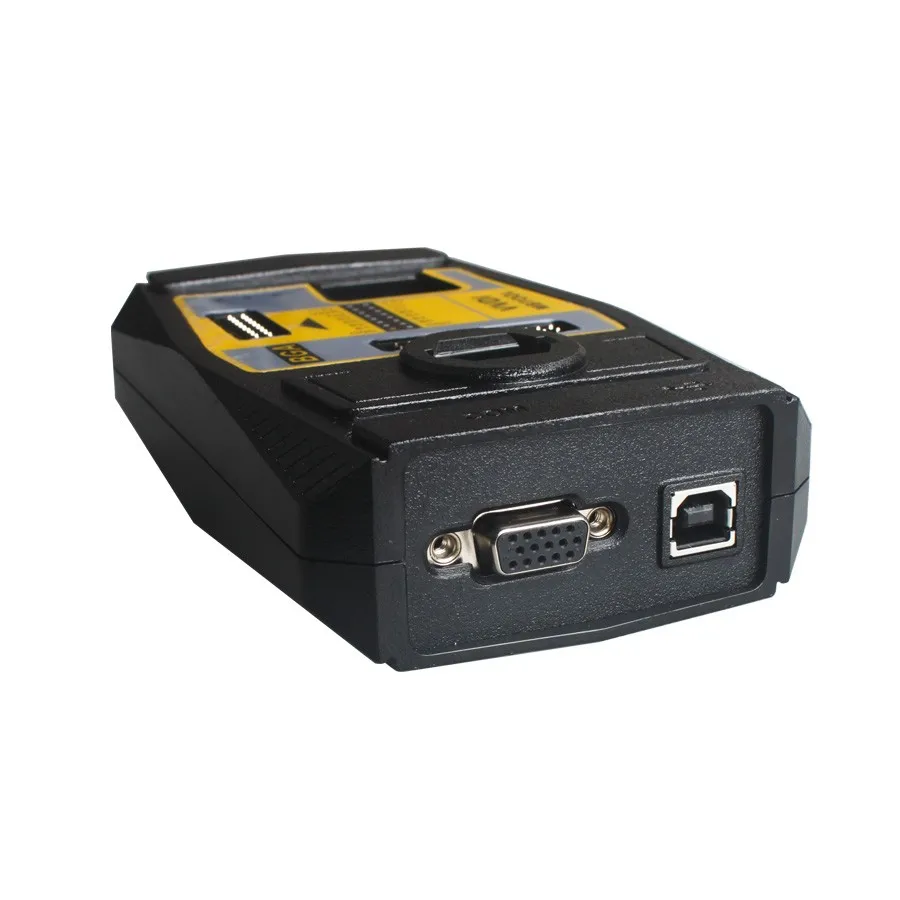

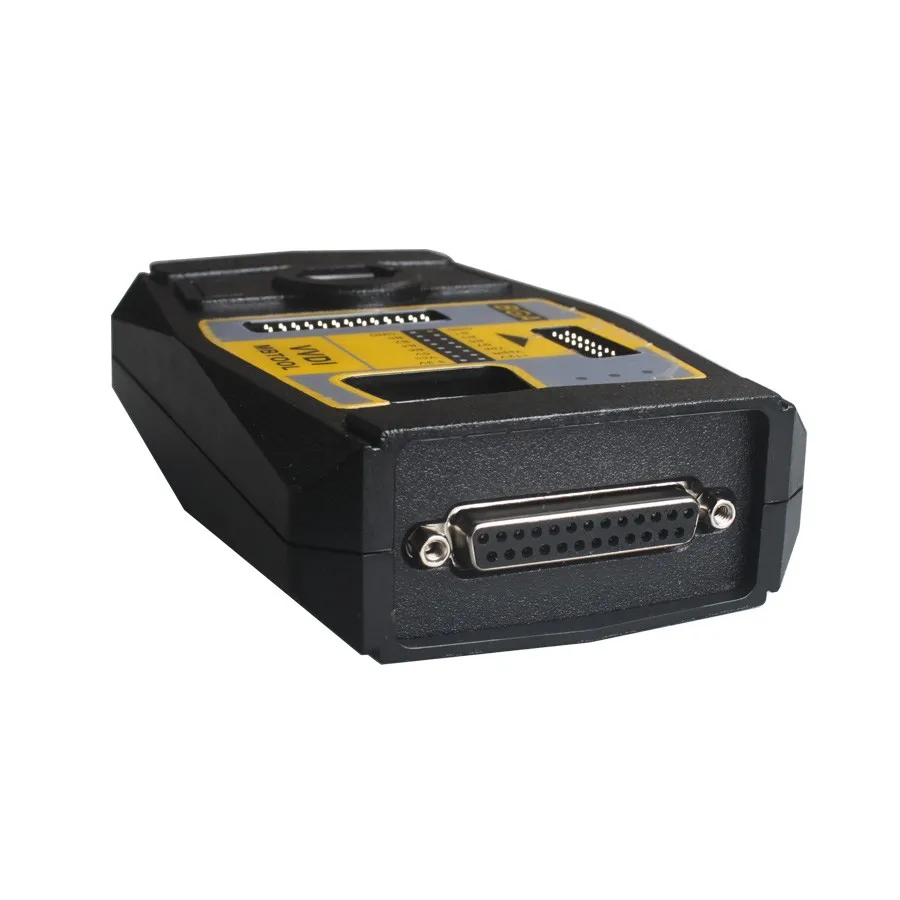

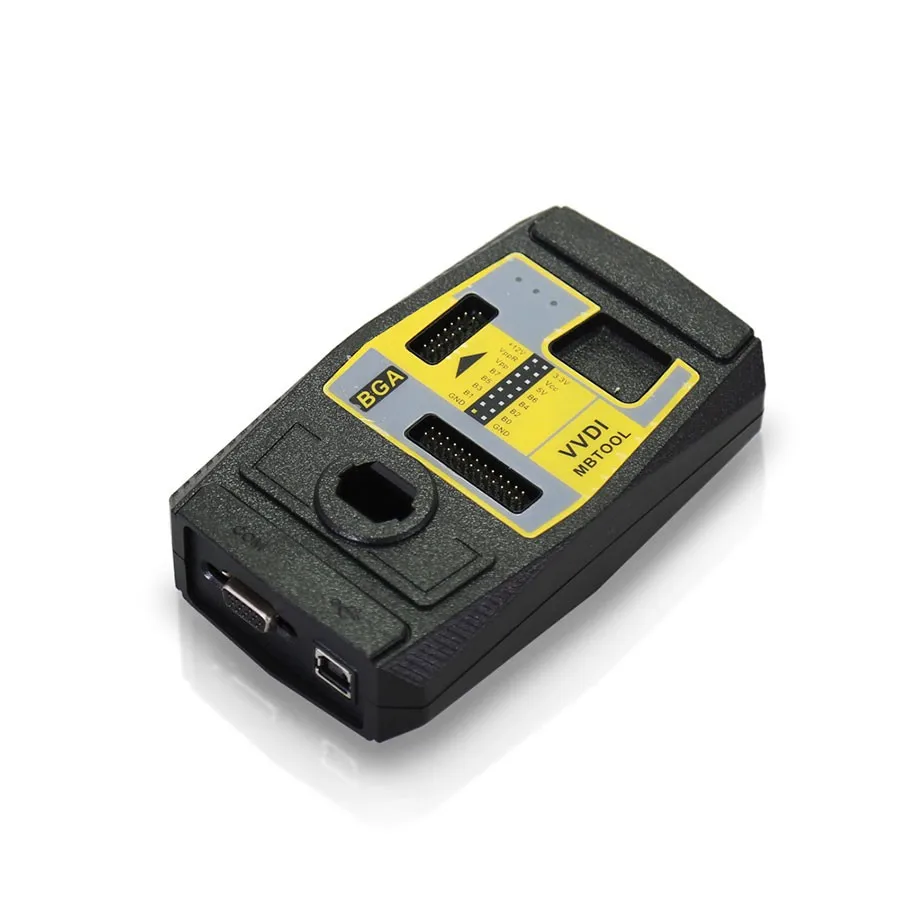

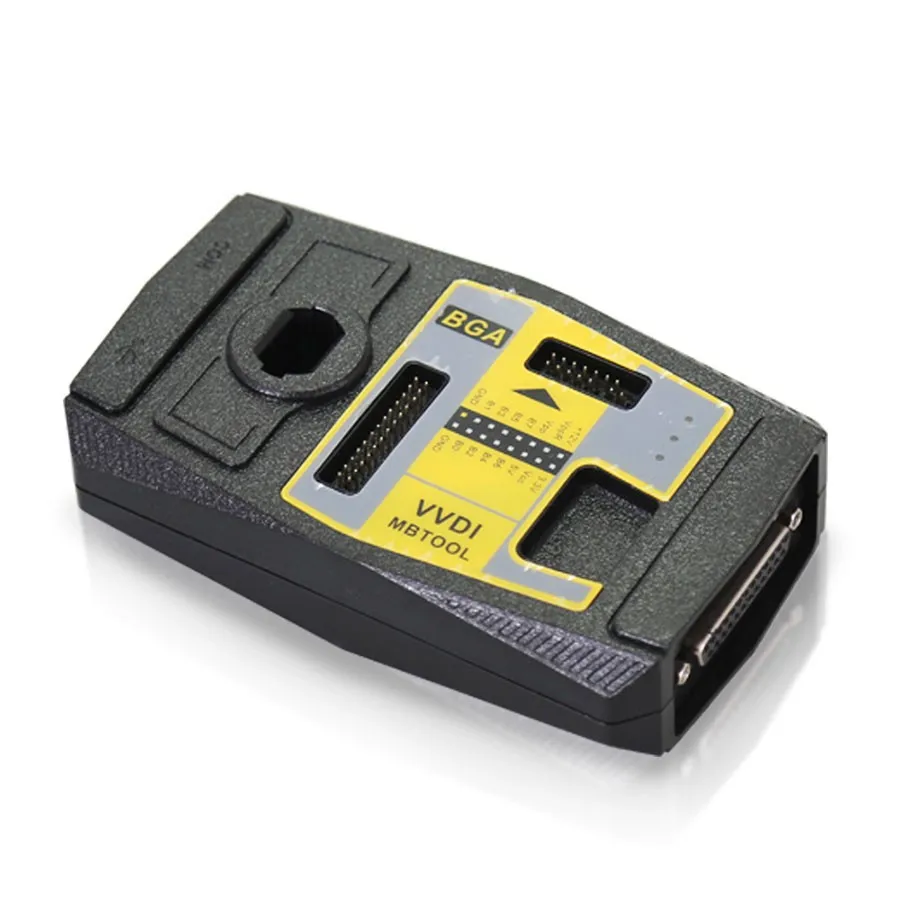

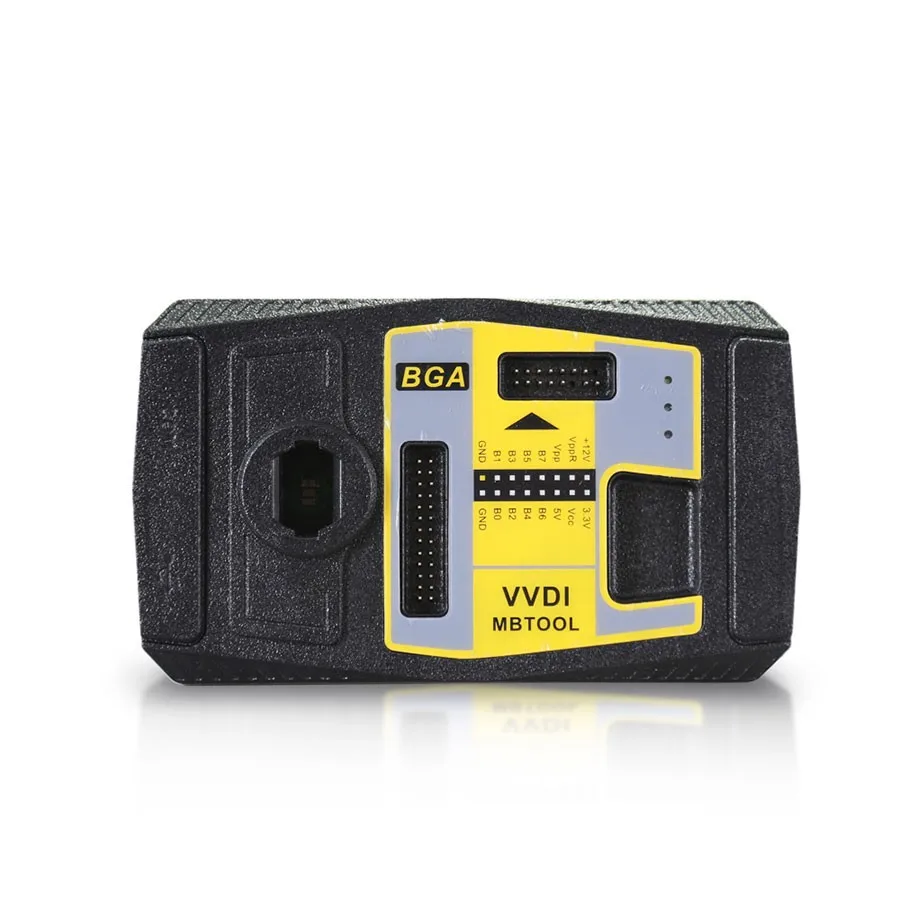

Xhorse VVDI MB BGA TOOL

Latest Version:V5.0.5

Xhorse VVDI MB BGA TOOL Function Introduction:
1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function.

Notice:
1. If you have bought Condor key cutting machine, you can buy SK185-B at 1200usd Only
2. It Supports Password Calculator Function. Each time will cost 44.99USD. It takes 4 minutes to collect data, and 2 minutes to calculate.
3. Not Support All Key Lost
4. In the future, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and Gearbox ECU Refresh Diagnostic Cable (the last cable of the following picture).

VVDI for Benz BGA Tool Customer Feedback:

1. I test password from 212 new model super
good tool need pay 2 tokens
need 10 min all ok

2. Do you have see video of this tool?
They say can do all key lost on w212.
No tool can do it even Mehaco or nec pro51.
w212 eis on video, sure it can.. mehaco/mercedesinstrument can do all keys lost on w212.. the option is availible a few months..

VVDI MB TOOL latest software version V5.0.5 update
2020-05-26 Require firmware V5.0.1

===== For BENZ V5.0.5 =====
1. Support VVDI smart key(FBS3) get bonus points
2. Support synchronize device time manually from menu
3. Bugfix

2019-09-19 Require firmware V5.0.1
===== for BENZ V5.0.2 =====
1. This update require update firmware V5.0.1
2. Bugfix for read BE key via IR
3. Bugfix for read ISM
4. Bugfix

2019-06-20 Require firmware V4.5.0

===== For BENZ V4.9.0 =====
1. This update no need update the firmware

2. Add new type for calculate password while all key lost:
a. Support W230 get key password with VVDIMB Power Adapter (All KEY LOST, 20 minutes-1 hour)
b. Support W169 type2 get key password with VVDIMB Power Adapter (All KEY LOST, 15 minutes)
c. Support W169 type2 get key password with slow method
d. Support W164/W251 -2009 (NEC chip)get key password with VVDIMB Power Adapter (All KEY LOST, 30 minutes)
3. Support write Mark value to NEC key from IR
4. Support write VIN to HC08/HC12 EIS(Kline)
5. Bugfix

2019-01-27 Require firmware V4.5.0
===== for BENZ V4.8.0 =====
1. This update no need update the firmware
2. Support W215, W220, W230 calculate password while all key lost:
a. No more need MCU's de/soldering, very safe and quickly
b. Support W215, W220 get key password with slow method (All KEY LOST, 2-3hours)
c. Support W230 get key password with slow method (All KEY LOST, 2-3hours)
VVDIMB support all the FBS3 EIS while all key lost:
W166, W197, W212, W218, W246
W172, W204, W207
W216
W164, W251 (-2009)
W164, W251 (2009-)
W169, W209, W211
W202, W208, W210
W215, W220
W230
W203, W463, W639
W639(2009-)
W906
W221
3. Bugfix
2018-07-13 Require firmware V4.0.0
===== For BENZ V4.1.0 =====
1. This update no need update the firmware
2. Password calculation: Support calculate password for W202/W208/W210(KLine) EIS
a. No more need MCU's de/soldering, very safe and quickly
b. Support add key and lost all key for password calculation
c. The procedure require about 25-30 minutes
d. The procedure need MB Power Adapter support
e. The procedure should work on the bench, not on car
3. Bugfix for load motorola EEPROM dump file in EIS window
4. Bugfix for activate BE key
5. Bugfix for read EIS W209
6. Bugfix
2018-03-14 Require firmware V4.0.0
===== For BENZ V4.0.0 =====
1. Bugfix for prepare BE key
2. Bugfix for autodetect som w211 EIS
3. Support personalize/activate W906/W639 ESL: EIS Tools->W906->Personalize/Activate W906/639 ESL
4. Support activate ECU, ISM
5. Bugfix for personalize ECU, Gearbox, ISM
6. Bugfix

2018-01-10 Require firmware V3.6.0
===== For BENZ V3.7.0 =====
1. Bugfix for some countries can't synchronize with server
2. Bugfix for old motorola keys show incorrect key password
3. Bugfix
2017-12-23 Require firmware V3.6.0
===== For BENZ V3.6.0 =====
1. Attention: All user update device to firmware v3.6.0, software v3.6.0, the lower version don't support password calculation
2. Add Upgrade Kit, use upgrade kit to update the firmware. Menu->Update Online->Upgrade Kit
3. Improve the success rate of BAG key password, erase password and enable key password
1) The server have 99% success rate for key password now (You can get key password for only 1 time calculation)
2) Reduce the key password calculate time, we only need about 20 seconds for 1 time calculation
3) The server have 99% success rate for erase password and enable key password now
4) Add some old version NEC key for password calculation
5) We will continue update our server to achieve good result for BAG key password, erase password and enable key password
4. Support activate EIS from OBDII. Menu->Other Function->Customer request->Activate EIS
5. Support activate W906(NEC) ELV from OBDII
6. Bugfix
2017-11-21 Require firmware V3.5.0
===== For BENZ V3.5.0 =====
1. Attention: All user update device to firmware v3.5.0, software v3.5.0
2. Improve the success rate of erase password, the server will continue improve the database
3. New function: Menu->Other Function->Eeprom dump tool, support repair W210/W220 ISN eeprom dump
4. New function: Menu->Other Function->Read/Write EERPOM via OBDII, support read CPU eeprom from W202,W208,W210 EIS directly with KLine
5. New function: Menu->Other Function->Customer request, support communicate unit with CAN command(Professional user use)
6. Support detect EIS CPU chip from OBDII, after read EIS data via OBDII, you can get CPU chip is motorola or NEC
7. Support renew W639, W906(NEC) ESL via KLine
8. Bugfix for OBD communication with W639, W906 on the bench
9. Bugfix for erase problem in W204 ESL
10. Bugfix for IR read key hash on the motorola EIS
11. Support W209, W211 read password(from IR) under OBD mode
12. Add W251 EIS type
13. In Prepare Key File window, support save the key file in EIS folder automatically
14. Support Polish language
15. Bugfix

VVDI MB Tool V3.0.0 Update Feature:

2017-05-02Require firmware V3.0.0

===== For BENZ V3.0.0 =====
1. Attention: All user update device to firmware v3.0.0, software v3.0.0
2. New component released: VVDI MB Tool power adapter, contact dealer for payment
(1). Support fast mode for W204, W207 lost all key (Collect data only 18 minutes)
(2). Support W216, W164 2009- lost all key, no need insert IR adaptor for many times, save manpower
(3). Support read W164, W164 2009-, W209, W211 EIS via OBDII without gateway support
3. For the old for motorola keys: Support read and write, require NEC ELV adaptor(Menu->Special Function->Old for Motorola Key)
4. For some old W906, W639 EIS can not read data via OBDII, we support disable key
5. Bugfix for read v57 version password from key with NEC key adaptor
6. Bugfix


Support Key Types Display:

Xhorse VVDI for MB BGA TOOL Function Introduction:
1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV function will be released soon.
9. Renew other control modules function will support soon

Notice:
1. This item needs to be customized from Xhorse company. Need 5-10 days to get ready before shipment.
2. If you have bought Condor key cutting machine (SL273 Original iKeycutter CONDOR XC-MINI ), you can buy SK185-B at 1200usd Only
3. It Supports Password Calculator Function. Each time will cost 35USD. It takes 4 minutes to collect data, and 2 minutes to calculate.
4. Not Support All Key Lost
Latest Technical Details:

VVDI MB BGA tool update goes well, the following workable models are for reference only.
Model Support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906
Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59,v61
This two adapters are not in the parcel. If you need them, please click here to buy.
Two adapters: one for versions 28, 35, 40, 51, 57, another one for version 59.

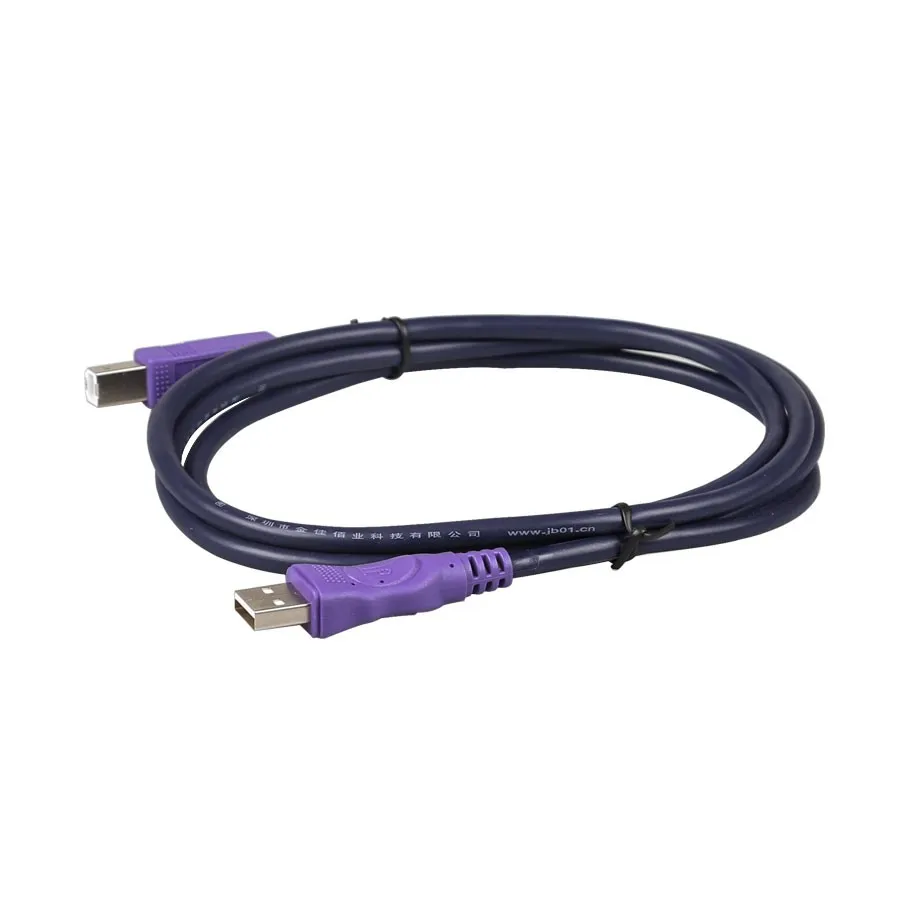

Package List:

1set x Xhorse VVDI MB BGA TOOL

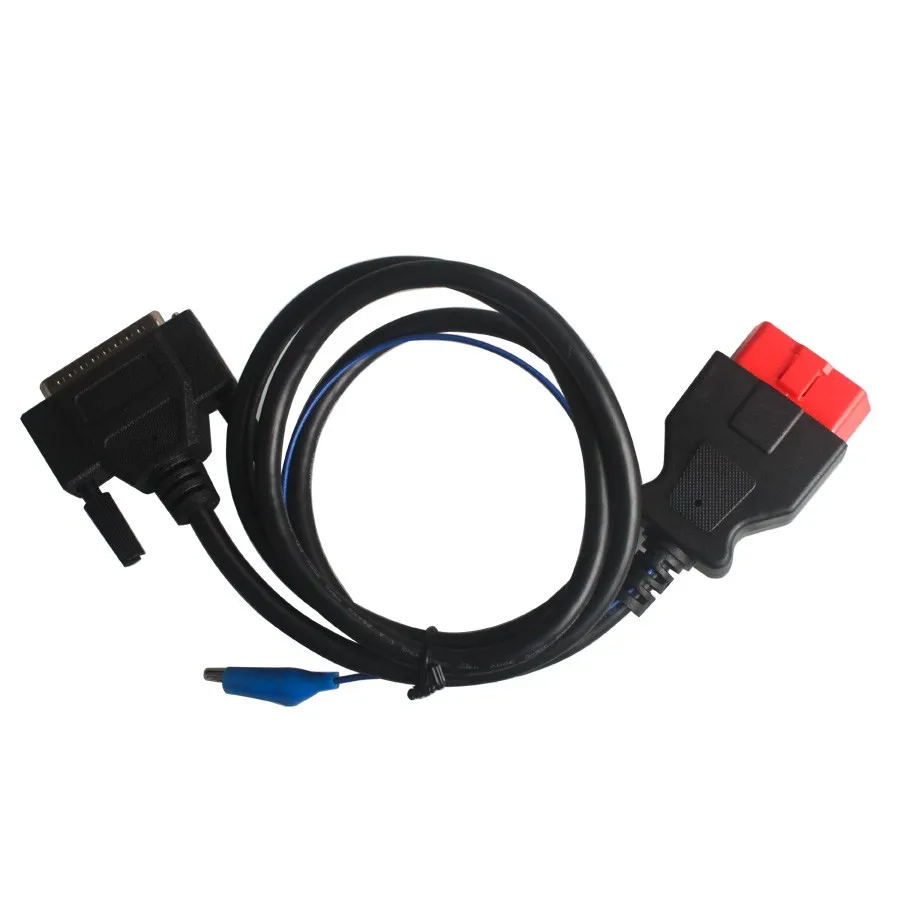

Connection Display:
